Variable Frequency Drive (VFD) - Compact Low Voltage

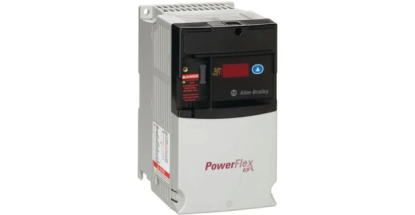

PowerFlex 40P AC Drive (Discontinued. Please refer to the PowerFlex 520 Series for replacement.)
Our PowerFlex® 40P AC Drives provide closed-loop control with an option for Category 3 Safe Torque-off in a compact and cost-effective design. This drive is designed to meet global OEM and end-user demands for flexibility, space savings and ease of use. It is a cost-effective solution for speed or basic position control of applications such as diverters, smart conveyors, packaging machines, and fiber-spinning machines.
Overview
- Power ratings:
- 200…240V: 0.4…7.5 kW / 0.5…10 Hp / 2.3…33 A
- 380…480V: 0.4…11 kW / 0.5…15 Hp / 1.4…24 A
- 500…600V: 0.75…11 kW / 1…15 Hp / 1.7…19 A
- IP20 NEMA/UL Type Open, plate drive, flange mount
- Optional IP30 NEMA/UL Type 1 conversion kit
- V/Hz control, sensorless vector control, as well as process PID
- Internal RS-485 and Common Industrial Protocol (CIP) communication
- 4-digit display, 3 additional status indicators and scroll/reset button
- Optional Remote Human Interface Modules (HIM) or PC interface for programming
- Speed control with and without encoder feedback
- Drive overload protection, ramp regulation, and flying start
- Fiber application-specific features
- StepLogic® allows operation as an independent position controller
- Configuration and programming via integral LCD keypad, remote keypad, or software
- Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
Available Safety Options
Safe Torque-Off option is certified at PLd/SIL2 Cat 3
-
ResourceTypesFile SizeDownload
-
PowerFlex 40P 交流變頻器規格
pdf5.12MB -
PowerFlex 4／40 交流變頻器規格
pdf2.64MB -
PowerFlex 520系列 手冊
pdf2.45MB -
PowerFlex 520 系列變頻器快速入門指南
pdf4.46MB -
PowerFlex 低壓變頻器選擇指南
pdf4.31MB -
PowerFlex 系列低電壓交流變頻器手冊
pdf813.75KB
