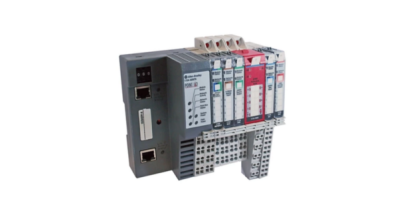

1734 POINT I/O Modules

• Modular design lets you independently select the I/O, termination style, and network interface
• Modules slide together for easy install and uninstall for easier maintenance
• Removable wiring system saves time and money during installation and troubleshooting
• Comprehensive diagnostics and configurable features makes POINT I/O™ easy to apply
• Removal and Insertion Under Power (RIUP) lets you replace modules while the system is in operation
• Mount horizontally or vertically, with no de-rating required
• Auto Device Replacement (ADR) reduces downtime
• Add-on-Profiles in the Studio 5000 Logix Designer® application provide smooth integration into Integrated Architecture systems
• Available with conformal coating

1734 POINT I/O Digital Modules

• Input, output, and relay output modules
• Wide variety of voltages
• Point-level output fault states for short-circuit and wire-off diagnostics
• Field-side diagnostics on select modules
• Choice of direct-connect or rack-optimized communications
• POINT Guard I/O™ modules for safety applications
• Configurable modules
  • Each point can be configured as a DC input or output
  • Available with DeviceLogix™ technology

1734 POINT I/O Analog Modules

• Up to eight single-ended inputs or outputs per module
• Thermocouple and RTD modules available
• Individually configurable channels
• On-board scaling
• Selectable input filters
• Over- and under-range detection

1734 POINT I/O Specialty Modules

• Counter and encoder modules
• Synchronous Serial Interface Absolute Encoder module
• Serial interface modules (RS-232, RS-485/RS-422)
• Address Reserve (ARM) module
• Supports connection to IO-Link enabled devices with the IO-Link master module
