Human-Machine Interface (HMI)
PanelView Plus 7

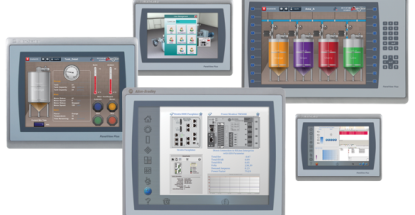

Our Bulletin 2711P PanelView™ Plus 7 Graphic Terminals are available in standard and performance versions. Our performance versions are available in conformal coat, stainless steel and on-machine (ArmorView™ Plus 7) options, offering flexibility to meet your specific needs. You can use FactoryTalk® View Machine Edition to build your application, help simplify configuration and strengthen your Integrated Architecture® solution. These terminals include Ethernet connectivity and enable you to monitor applications from remote locations with VNC server and FactoryTalk ViewPoint connectivity.
Overview
PanelView Plus 7 Standard
- Includes Windows CE 6.0 standard features and color TFT LCD, 18-bit color graphics
- Offers display sizes from 4...15 in. with wide screen and on-screen keypad options
- Allows monitoring of applications from a remote location with VNC connectivity and FactoryTalk ViewPoint
- Uses an SD card or USB drive to quickly copy and restore your application
- Includes email and texting notification capabilities
- Includes 512 MB RAM and 512 MB nonvolatile memory (approximately 80 MB free user memory)
- Offers 100 screens and 500 alarms when used with FactoryTalk Machine Edition software with connection to one controller
- Offers Ethernet 1 x RJ45 10/100 MB Auto-MDI/MDI-X with IEEE 1588 support
- Features single or DLR Ethernet ports for network connectivity
- Includes option for Allen‑Bradley® branded and brandless terminals
PanelView Plus 7 Performance
- Includes Windows 10 IoT Core (LTSC) operating system and color TFT LCD, 18-bit color graphics
- Offers display sizes from 7...19 in. with wide screen and keypad options
- Includes video playback support, which provides advanced user help capabilities
- Allows monitoring of applications from a remote location with VNC server connectivity and FactoryTalk ViewPoint
- Uses an SD card or USB drive to quickly copy and restore the operator interface
- Includes email and texting notification capabilities
- Includes 4GB RAM and 20GB nonvolatile memory (approximately 2GB free user memory)
- Features two Ethernet ports that support DLR, linear, or star network topologies
- Includes option for Allen‑Bradley branded and brandless terminals
Conformally Coated Version
- Available on all PanelView Plus 7 Performance versions with touch-only displays and 15 in. Keypad display
- Severity Level GX per ANSI/ISA 71.04-2013
Stainless Steel Version
- Offers brandless display in 9, 10, 12, and 15 in. sizes
- Features 316 stainless steel bezel
- Includes replaceable blue food-grade silicone gasket
- Includes conformal coating
- Features NSF certification
- UL IP69 rated and tested to IP69K according to ISO 20653
ArmorView Plus 7 Version
- Offers 12 in. display size in a fully self-enclosed panel
- Features IP66 protection for a cabinet-free HMI solution
- Offers sixteen standard button plate configurations
- Includes option to individually customize buttons and switches, plus a hard-wired E-stop
- Features options to increase flexibility, including orientation mount options from either a swing arm, pedestal, or fixed surface
