Rockwell-Automation
Human-Machine Interface (HMI)

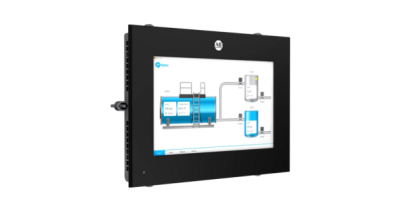

OptixPanel Compact Graphic Terminal
Available in 4-inch and 7-inch screen sizes, simplifying various applications.
Features aluminum widescreens with single-point analog resistive touchscreens.
Supports multi-touch gestures (e.g., swiping, pinching) for enhanced usability.
Compatible with a wide range of connectivity options.
Features aluminum widescreens with single-point analog resistive touchscreens.
Supports multi-touch gestures (e.g., swiping, pinching) for enhanced usability.
Compatible with a wide range of connectivity options.
OptixPanel Compact Graphic Terminal
- Available in 4” and 7” screen sizes making some applications easier
- Includes various bezel options and touch screen technologies
- Aluminum Widescreen with single touch analog resistive screen
- Aluminum and glass widescreen with PCAP multitouch screen
- Screen support for gestures (swipe, pinch, and so on) in the multitouch variants
- Supports various connectivity options
- One USB 2.0 port
- One Gigabit Ethernet port
- One DB9 serial port (RS232/422/485) non-isolated
- Runs FactoryTalk Remote Access Basic
- Runs FactoryTalk Optix with 8 feature tokens, upgradeable to 11
- Includes FactoryTalk® Optix™ Runtime Small license (8 feature tokens), upgradable to Medium (11 feature tokens)
- Includes FactoryTalk® Remote Access™ Runtime Basic license, upgradable to Pro license
-
ResourceTypesFile SizeDownload
-
OptixPanel 精巧型圖形人機介面規格
pdf1.13MB
