Micro800 PLC Plug-in Modules and Accessories

With our Bulletin 2080 Micro800™ programmable logic controllers (PLC) plug-in modules and accessories, you can adapt your base unit controller to fit your application needs. Extend the functionality of embedded I/O without increasing the footprint of your controller. Increase the system capabilities through memory and clock modules.

SHARE：

Product introduction
Download

Overview

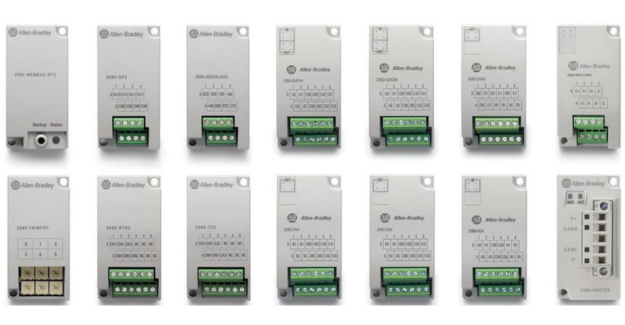

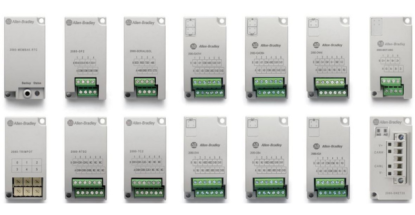

Plug-in Modules

Available for additional I/O, communications, backup memory and specialty capabilities
Snaps easily into controller without expanding the footprint
Operates in -20…+65 °C (-4…+149 °F) temperatures

2080 Communication Plug-in Modules

Include DeviceNet^® scanner modules that enhance communication capabilities up to 20 nodes of PowerFlex^® AC drives or CompactBlock™ LDX I/O and also reduce wiring and installation costs for larger standalone machines that have distributed drives and I/O
Provide isolated serial port to support RS-232 and RS-485 communications
Address even the most intensive serial communications tasks with Modbus RTU and ASCII protocol support
Allow you to expand with up to five additional serial ports

2080 Analog I/O Plug-in Modules

Support analog input and output (2-channel, 4-channel, non-isolated)
Allow you to expand with up to 20 analog inputs
Include resistance temperature detector/thermocouple (2-channel, non-isolated) modules that support temperature control when used with PID

2080 Digital I/O Plug-in Modules

Reduce the need for external relays with flexibility to add up to 20 relay outputs
Allow you to customize your controller in a cost-effective manner for input-intensive or output-intensive applications
Double the amount of I/O without increasing the controller size

2080 Specialty Plug-in Modules

Include motion high speed counter modules that support touch probe input in hardware for exact registration of axis and also provide position verification for servo and encoder feedback modes
Include trim potentiometer modules (6-channel, analog input) that are low-cost method of adding six analog presets for speed and position control and can also be embedded into controllers to avoid casual access by operators

2080 Backup Memory and High-accuracy Real-time Clock Plug-in Modules

Provide one-touch back-up, supports removal and insertion under power
Can be used to clone and update PLC application code (available for Micro830® controllers only)
Provide high-accuracy real-time clock function without need to calibrate or update

Accessories
