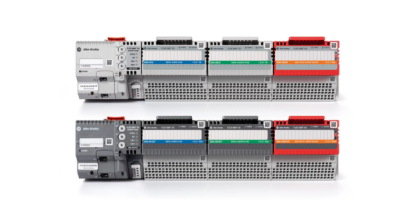

5094 FLEX 5000 I/O Modules

Our FLEX 5000® I/O modules are a rugged and flexible distributed I/O solution, which allows you to choose your I/O to meet your operational needs. FLEX 5000 I/O enhances communication with 1 Gb EtherNet/IP™ connectivity, which offers higher speed and increased bandwidth. To provide flexibility in your network architecture, these modules include 2 copper or 2 fiber ports (SFP) and support for DLR, Star, Linear, and PRP topologies.

SHARE：

Product introduction
Download

Overview

Reduces system costs and complexity with the flexibility to mix and match standard and safety I/O modules in one platform
Offers true integrated safety with discrete and analog fail-safe I/O modules, TÜV certified up to SIL 3, PLe, Cat. 4, with up to 10 ms safety reaction time
Enhances communication with 1 Gb EtherNet/IP connectivity through copper or fiber, with SFP adapters
Supports a wide range of network topologies: Device Level Ring (DLR), Star, Linear, and Parallel Redundancy Protocol (PRP)
Optimizes footprint with horizontal or vertical installation and interconnect cable extension
Provides direct fiber connection to the adapter with the option to connect up to 16 modules per adapter
Allows users to replace modules while the system is in operation with easy snap-on installation via Removal and Insertion Under Power (RIUP)
Offers flexible and modular capability to support up to 32-channel digital and 8-channel analog input/output
Operates in -40…+70 °C (-40...+158 °F) temperatures and in hazardous areas in Class I, Division 2, Zone 2, Groups A, B, C, D
Allows for use in extreme environments with XT version up to G3 with conformal coating, which helps protect against environmental stresses
Offers the ability of reporting frequency, acceleration and directions with isolated-frequency input modules
Functions as remote I/O modules with ControlLogix® 5580, CompactLogix™ 5380 and CompactLogix 5480 standard controllers and with GuardLogix 5580 and Compact GuardLogix 5380 safety controllers
Supports ControlLogix 5580 controller redundancy (in DLR and PRP network topologies) for high availability applications from Studio 5000 Logix Designer® application version 33 or later
Ideal for Hybrid and Process applications such as emergency shutdown, burner management, turbine control, compressor control, oil and gas auxiliary boilers, high-pressure protection, lighting, and ventilation management

Video Player

00:00

04:18

Distributed I/O Solution for Process, Hybrid and Discrete Applications

Discover how FLEX 5000 I/O can help you gain greater flexibility and control to achieve better operational efficiency and reliability.

FLEX 5000 HART I/O modules

Allows access to highly integrated HART devices available in the I/O tree
Provides easy access to device health via enhanced diagnostics
Reduces engineering through tight integration with PlantPAx® 5.0 and above instruction set
Simplifies maintenance with visibility to device tag diagnostics based on Device Description (DD) files
Increases productivity with easier device configuration of process devices via embedded device type managers (DTM)
Maximizes uptime by adding and replacing Process devices online
Minimizes downtime through easy access to additional Process diagnostics via highly integrated HART in the Studio 5000 Logix Designer application

FLEX 5000 interconnect cables

Helps split the FLEX 5000 I/O bank into two sections for more flexible mounting and easy installation in smaller spaces
Provides system-side power to FLEX 5000 I/O modules
Available in multiple lengths (0.5 m, 0.7 m, 1 m, and 3 m)
