ControlLogix 5570 Controllers

Overview

• Supports Integrated Motion on EtherNet/IP™, integrated Sercos™ motion, and analog motion
• Supports full controller redundancy and removal and Removal Insertion Under Power (RIUP)
• Communicates via EtherNet/IP, ControlNet™, DeviceNet™, Data Highway Plus™, Remote I/O, SynchLink, and third-party process and device networks
• Lets you program using relay ladder logic, structured text, function block, and SFC languages
• Includes conformal coating on products that include a "K" in the catalog number, to help protect in harsh environments
• Includes a 1756 Slim Power Supply option for series B and C standard and 1756 XT Chassis, which offers a 29% reduction in width when space is limited
• Offers chassis with up to 17 slots in standard, conformal coated, and extreme temperature versions

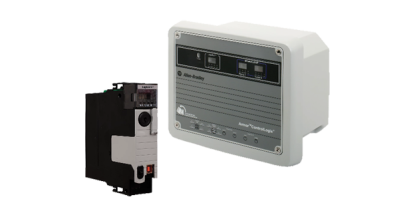

On-Machine Controllers

• Delivers standard and safety On-Machine™ control that increases uptime and reduces cost
• Minimizes hardware in the control cabinet with placement directly on the machine

GuardLogix Safety Controllers

• Provides safety and integrated motion in the same chassis
• Offer TUV certification for SIL 3 functional safety (controller and safety partner required)
• Simplifies machine architecture and reduce system footprint with the Armor GuardLogix controller
• Can operate in environments with -25…+70 °C (-13…+158 °F) when used independently
• Can operate in environments with -20…+70 °C (-4…+158 °F) when used with FLEX™ I/O-XT modules

Extreme Environment Controllers

• Can operate in environments with -25…+70 °C (-13…+158 °F) when used independently
• Can operate in environments with -20…+70 °C (-4…+158 °F) when used with FLEX™ I/O-XT modules
