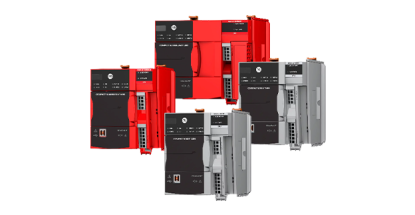

CompactLogix 5380 Controllers

Our CompactLogix™ and Compact GuardLogix® 5380 controllers provide higher performance, increased capacity, improved productivity and enhanced security to help meet the growing demands of smart machines and equipment for manufacturing. All standard and safety controllers use a modern programming environment, Studio 5000 Logix Designer® application, to allow users to work collaboratively to design and maintain their systems. This common environment optimizes efficiency, reduces time to commission and manages integrated motion over EtherNet/IP™ for high-speed motion applications and up to SIL 3/PLe safety solutions. These controllers are ideal for applications requiring high-performance communications, I/O and motion control for up to 32 axes.

SHARE：

Product introduction
Download

Overview

Ideal for small to large applications that require low axis motion and I/O point counts
Enable high-speed I/O, motion control, Device Level Ring and Linear topologies
Offer a 1 gigabit (Gb) embedded EtherNet/IP port that enables CIP safety connections, I/O and safety devices
Include dual configurable ports that support Dual-IP address
Provide enhanced diagnostics and troubleshooting with controller status and fault display
Offer controller functions optimized for maximum system performance
Offer enhanced security features that include controller-based change detection, logging, encrypted firmware and role-based access control to routines and Add-On Instructions
Support up to 31 local Compact 5000™ I/O modules
Offer integrated motion on EtherNet/IP up to 32 axes
Offer a wide range of memory options from 0.6...10 MB

Compact GuardLogix 5380 safety controllers

Achieve up to SIL 2/PLd with 1oo1 architecture or up to SIL 3/PLe with 1oo2 architecture
Offer standard memory options from 0.6…10 MB
Offer safety memory options from 0.3…5 MB
Offer 1 gigabit (Gb) embedded Ethernet port
Support communication options for up to 180 EtherNet/IP nodes
Offer conformal coated options for harsh environments
Provide single controller/software/network for standard and safety control
Ability to mix and match safety and standard I/O
Provide integrated safety functions with drives and motion
Ability to connect with scaled HMI options from PanelView™ 800 graphic terminals

CompactLogix 5380 Process controllers

Ideal for industries such as Food & Beverage, Oil & Gas, Chemical, Plastics, Life Sciences, Metals & Mining
Incorporates standard controller functionality with motion capability and conformal coating option
Provides tight integration with PlantPAx 5.0 system, which reduces the need to import Add-On Instruction
Enables user to subscribe and receive diagnostic information through FactoryTalk View Site Edition without additional programming
Recognize our process controllers with catalog numbers 5069-L320ERP and 5069-L340ERP
