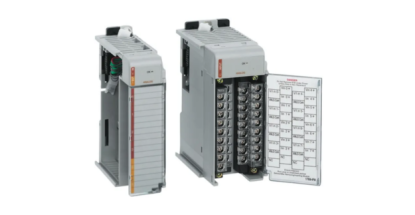

1769 Compact I/O Modules

• Provides flexibility with DIN Rail or panel mounting options
• Includes individual point diagnostic status indicators to ease troubleshooting
• Prevents incorrect positioning of module with software keying
• Connects as many as three banks of Compact I/O™ to a controller; requires use of a communication adapter module and power supply

1769 Compact Digital I/O Modules

• Offer a variety of AC and DC voltages
• Include 8…32 points per module
• Include contact output modules
• Include high speed input modules
• Offer input filtering
• Provide optical isolation

1769 Compact Analog I/O Modules

• Offer analog, thermocouple, and RTD modules
• Provide high accuracy ratings
• Include over-range and under-range detection and indication
• Include on-board scaling
• Offer selectable response to a broken input sensor
• Include ability to direct output device operation during an abnormal condition
• Provide individually configurable channels
• Include autocalibration of inputs

1769-AENTR I/O Modules

• Support single network strategy to EtherNet/IP TCP/CIP connection 96
• Provide dual Ethernet ports for both DLR and linear topologies
• Simplify your system architecture with distributed I/O over EtherNet/IP
• Allow control migrations with re-use of existing 1769 I/O
• Include I/O packet rate of 10,000 pps
• Offer direct connection

1769 Compact Specialty I/O Modules

• Address reserve, ASCII, Boolean control, and high-speed counter modules available
• Direct 1769 platform connection to PowerFlex® drives and other devices through Compact I/O™ to DPI/SCANport™ and Compact I/O to DSI/Modbus modules

Additional Information

• Our Integrated Architecture Solutions

   provide the foundation to drive plantwide optimization efficiently and effectively, enabling you to respond competitively to the economy and changes in consumer demand.
• Our PartnerNetwork™ offers complementary product solutions for 1769 Compact I/O modules

   and 1769 CompactLogix Add On Profiles through the Encompass Product Reference program

  . You can sort and filter products from best-in-industry suppliers in your region to connect to the Rockwell Automation® architecture, or to use with our products.
